Many MOSS DIVE DEPTH systems sold in 2021
New order for MOSS-DEPTH systems
MOSS diepte meetsysteem voor afstellen ankers
2x MOSS logger installed for transport monitoring from China to Europe
Installation of WAVE HEIGHT radar of RADAC on ship
Delivered special cases with windows
For REDBOX the MOSS system was used during a loadout in China.
After the first two MOSS units an additional order of four units was received.
In 2016 the MOSS developed into a multi purpose tool which has been used for many different application.
The combination of the AQUADOPP sensor of NORTEK with the MOSS unit created a portable current (water-flow) monitor system called AQUADOPP-EXPLORER.
On request of client the MOSS-PAMS was extended with a draft sensor.
MOSS-PAMS : Monitoring BARGE angles during load-out
Depth measurement on civil construction with MOSS-Depth system
Delivery of client specific MOSS with additional report tool
MarineLink magazine presenting the survey systems MOSS on their digital website.
Very successful exhibition days on the OFFSHORE ENERGY Exhibition 2015 in Amsterdam Rai.
TARKA-SYSTEMS developed a new portable survey/measurement case. Based on modular input modules and an integrated battery supply the MOSS is ideal for surveys and field applications.
TARKA-SYSTEMS followed a software training to learn the details of the software used in the data-gathering modules of the MOSS. With the software most client specific requests can be applied to the Graphical User Interface (GUI).

Depth measurement with MOSS

zondag 14 februari 2016

Over 300 points of anchors and tables are set on exact depth by use of the MOSS-Depth.

For the exact depth measurement the MOSS uses two pressure sensors, one atmosphere sensor which is integrated inside the MOSS case
and an absolute sensor connected by cable.

The depth measurement with the MOSS has the following advantages:

• Digital measurement by means of a pressure sensor instead of visual observation of lead-line.
• Easy to apply, from Dive-container on site or dive bus nearby without the need of a small boat or pontoon.
• No extra personal on pontoon needed.

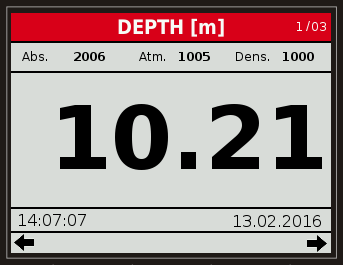

• Direct readings on screen of MOSS.
• Readings are stored for validation or generation reports.
• Portable system with integrated battery supply.
• Client specific software possible.
• Pressure sensor can be connected to existing umbilical of diver.
• Optional: connection of density sensor.
• Optional: Excel tool for project settings and automatic generation of reports.
